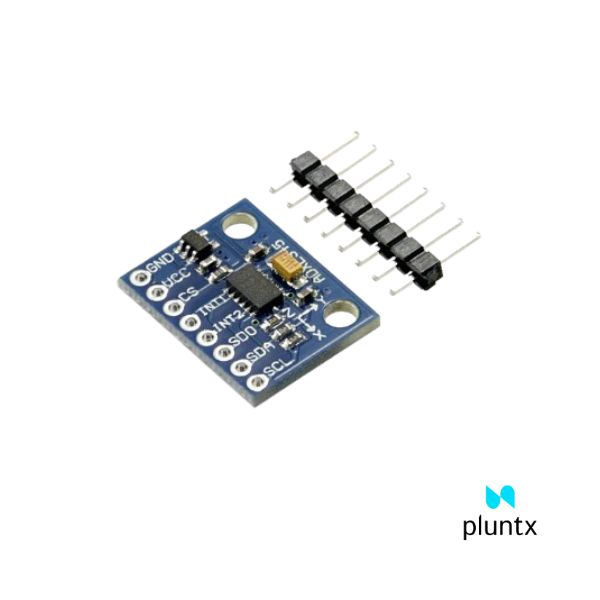

The ADXL345 is a versatile triple-axis linear accelerometer sensor by Analog Devices. It measures acceleration along X, Y, and Z axes with selectable resolutions and ranges. Providing digital output through SPI and I2C interfaces, it’s ideal for motion and tilt detection in low-power applications, thanks to its efficient design.
Applications :
- Pointing devices.
- Medical Instrumentation.
- Gaming.
- Industrial instrumentation.
- Personal navigation devices.
- Hard disk drive (HDD) protection.
- Fitness equipment.
- defense and aerospace.
| Input Supply Voltage (VDC) | 3.3 ~ 5 |
| Interface Type | I²C, SPI |
| Sensing Range | ±2g, ±4g, ±8g, ±16g |
| X-Axis Sensitivity | 28.6 LSB/g |
| Y-Axis Sensitivity | 31.2 LSB/g |
| Z-Axis Sensitivity | 34.5 LSB/g |
| Length (mm) | 20.5 |
| Width (mm) | 15.5 |
| Height (mm) | 3.5 |
| Weight (gm) | 0.6 |
| Shipment Weight | 0.085 kg |
| Shipment Dimensions | 4 × 3 × 1 cm |
THIS PACKAGE INCLUDES:-
1X ADXL345 – Triple Axis Linear Accelerometer Board
