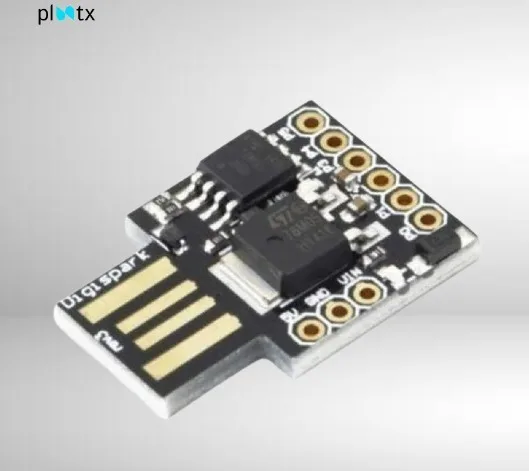

The ATTINY85 General Micro USB Development Board is a versatile and compact microcontroller board designed for easy prototyping and development. Powered by the ATtiny85 microcontroller, this board offers a range of functionalities in a small form factor. It features a Micro USB port for convenient power supply and programming, making it accessible to beginners and hobbyists. With GPIO pins, analog inputs, and PWM outputs, it supports various projects, from simple LED blinking to more complex applications like sensor interfacing and low-power devices. Its user-friendly design and compatibility with the Arduino IDE simplify the development process, making it an excellent choice for DIY electronics projects and educational purposes.
Features :
- Support for the Arduino IDE 1.0 + (OSX/Windows/Linux).
- Power via USB or External Source or 7-16 v to 5 v (automatic selection).
- The On – board, 150 ma 5 v Regulator.
- Built – in USB and serial was debugging).
- 6 I/O Pins (2 inform the for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB).
- 8 k Flash Memory (about 6 k after bootloader).
- The I2C and SPI (vis USI).
- PWM on 3 pins (more possible with Software PWM).
- The ADC on 4 pins.
- The Power LED and the Test/Status leds.
| Length (mm) | 26 |
| Width (mm) | 18 |
| Height (mm) | 5 |
| Weight (gm) | 4 |
| Shipment Weight | 0.005 kg |
| Shipment Dimensions | 4 × 3 × 1 cm |
Package Includes :

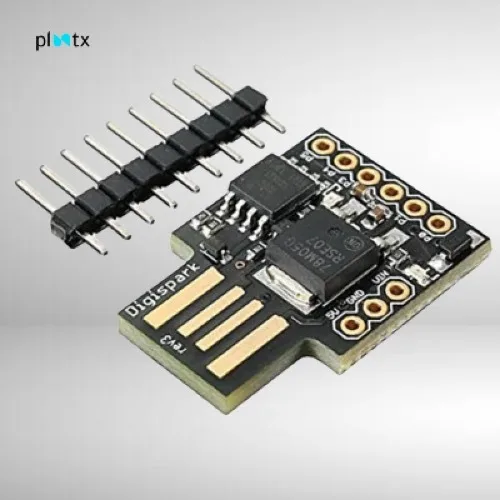

1 x ATTINY85 USB Development Board.
