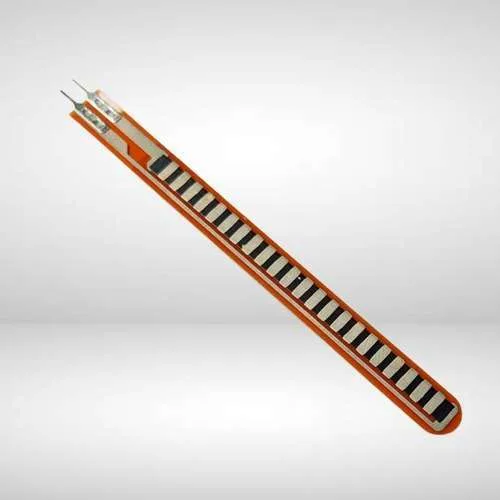

Flex Sensor 2.2 inch Bend Sensor for Hand Recognition

Original price was: ₹352.00.Current price is: ₹294.00.

The 2.2-inch Flex Sensor is a versatile and innovative input device used in various applications, including robotics, wearable technology, and human-machine interfaces. This flexible sensor changes its resistance as it bends, allowing it to detect and measure the degree of flexion or deformation. With a length of 2.2 inches, it provides a wide range of motion detection. Its compact and lightweight design ensures easy integration into projects. The sensor offers precise and real-time feedback, making it ideal for applications requiring gesture recognition, motion tracking, or monitoring joint movements. It’s a valuable tool for creating responsive and interactive electronic systems.

Availability: 1 in stock

SKU: PLU0318 Category:

FLEX Sensor Features and Specifications:

  • Operating  voltage: 0-5V
  • Power rating : 0.5Watt (continuous), 1 Watt (peak)
  • Operating temperature: -45ºC to +80ºC
  • Flat Resistance: 25K Ω
  • Resistance Tolerance: ±30%
Total Length (cm)7.5
Active Sensor Length55mm
Life Cycle>1 million
Height0.43mm (0.017″)
Flat Resistance10K Ohms ±30%
Bend Resistanceminimum 20K Ohms ±30% (@ 180° pinch bend)
Power Rating0.5 Watts continuous; 1 Watt Peak.
Shipment Weight0.002 kg
Shipment Dimensions3 × 2 × 1 cm



Weight0.021 g
Dimensions3 × 2 × 1 mm
