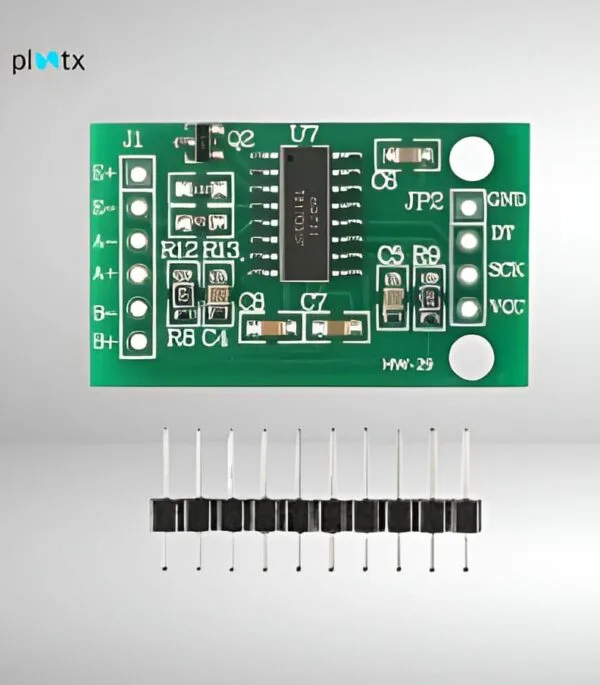

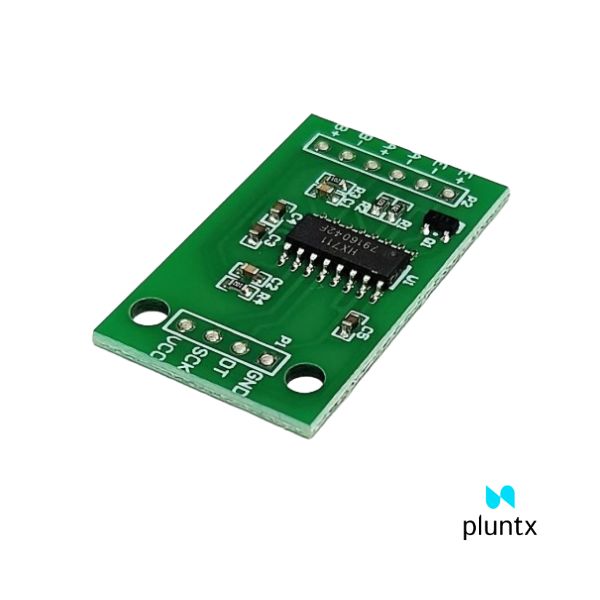

HX711 Load Cell Amplifier Module

Original price was: ₹78.00.Current price is: ₹47.00.

The HX711 is a highly popular and versatile precision analog-to-digital converter (ADC) specifically designed for use with load cells and strain gauges. It serves as a crucial bridge between the analog world of sensors and the digital realm of microcontrollers and computers. The HX711 module amplifies and digitizes small analog signals from sensors, making it ideal for applications like weight measurement, force sensing, and industrial automation. It typically offers high resolution, precision, and low noise, allowing for accurate and reliable data acquisition. With its ease of use and compatibility with various microcontrollers, the HX711 is a fundamental component in creating precise and responsive measurement and control systems.

Availability: 1 in stock

Add to WishlistAlready In Wishlist
Add to Wishlist
SKU: PLU0330 Category:

Specifications and Features :

  1. Recommended excitation voltage: 5-10V.
  2. Two selectable differential input channels.
  3. On-chip active low noise PGA with a selectable gain of 32, 64 and 128.
  4. On-chip power supply regulator for load-cell and ADC analogue power supply.
  5. Selectable 10SPS or 80SPS output data rate.
  6. On-chip oscillator requiring no external component with optional external crystal.
  7. On-chip power-on-reset.
  8. Simple digital control and serial interface: pin-driven controls, no programming needed.
  9. Simultaneous 50 and 60Hz supply rejection.
Operating voltage (v) 5 ~ 10
Current consumption normal operation < 1.5mA
Operating Temperature (°C) -40 ~ +85
Length (mm) 34.3
Width (mm) 20
Height (mm) 3
Weight (gm) 5
Shipment Weight 0.01 kg
Shipment Dimensions 10 × 8 × 6 cm
Weight 0.1 g
Dimensions 10 × 8 × 6 mm
