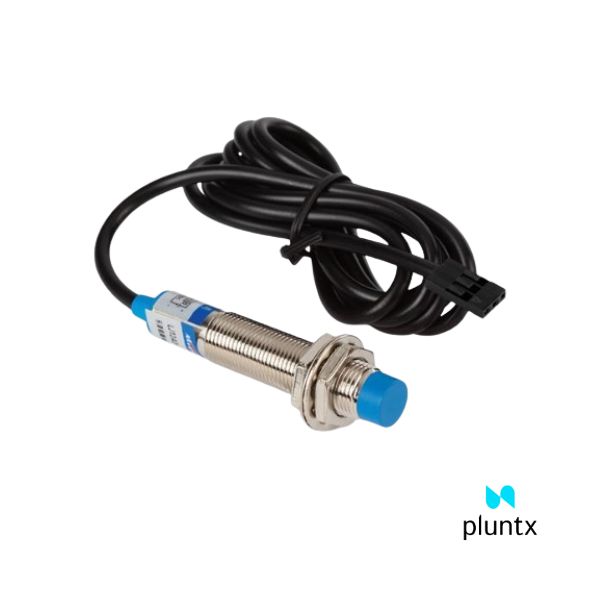

An inductive proximity sensor is a robust, non-contact sensing device widely used in industrial automation. It detects the presence or absence of metallic objects within its sensing range by generating a high-frequency electromagnetic field. When a metallic target enters this field, it induces eddy currents in the object, causing the sensor to trigger an output signal. These sensors offer fast and precise detection capabilities, are immune to environmental factors like dust and moisture, and require no physical contact with the target. They find applications in machine automation, robotics, conveyor systems, and more, enhancing efficiency and reliability in manufacturing and assembly processes.
Inductive Proximity Sensor applications:
Availability: 1 in stock
| Operating Voltage (VDC) | 6 ~ 36 |
| Detection Distance (mm) | 4 |
| Outer Thread Size | M12 |
| Object Type | Inductive |
| Output Type | NPN Normally Open Three-line |
| Installation Type | Non-Flush (Unshielded) |
| Max Output Current (mA) | 200 |
| Setting Distance (mm) | 0 ~ 2.4 |
| Insulation Resistance (MΩ) | 50 |
| Operating Temperature (°C) | -25 to 70 |
| Storage condition (℃) | -30 to 80 |
| Cable Diamensions | Ø3.5, 3-Wire, 2 Meter |
| Weight (gm) | 60 |
| Shipment Weight | 0.064 kg |
| Shipment Dimensions | 11 × 8 × 5.5 cm |
1X INDUCTIVE PROXIMITY SENSOR
| Weight | 0.64 g |
|---|---|
| Dimensions | 11 × 8 × 5.5 mm |
