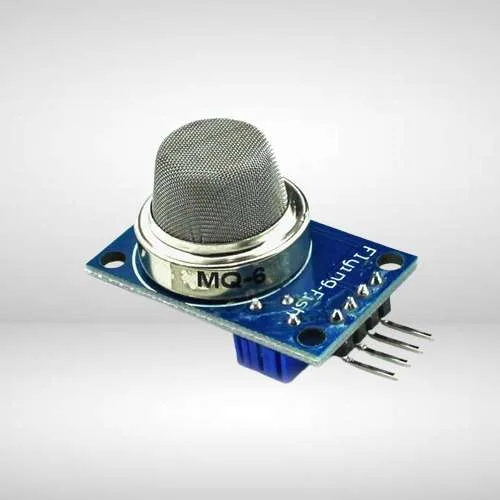

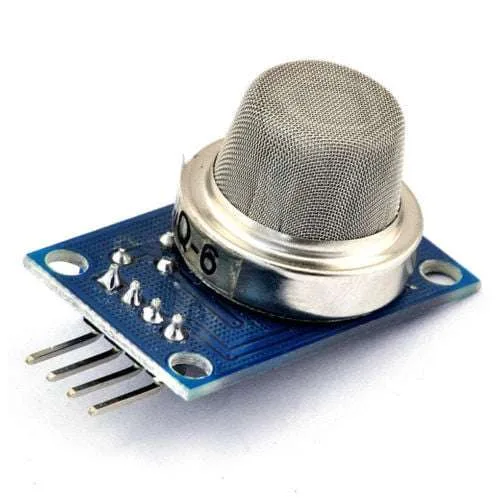

MQ-6 Liquefied Petroleum Isobutane Propane Gas Sensor module

Original price was: ₹113.00.Current price is: ₹96.00.

The MQ-6 module is a gas sensor designed for detecting various combustible gases, including LPG, butane, propane, and methane. Equipped with the MQ-6 gas sensor, it offers high sensitivity and rapid response to gas concentrations in the environment. This module is ideal for applications such as gas leakage detection, industrial safety, and household gas monitoring. It provides both analog and digital output signals, making it adaptable to different systems. With its compact size and ease of integration, the MQ-6 module is a dependable choice for enhancing safety and preventing gas-related accidents in residential, commercial, and industrial settings.

Availability: 1 in stock

SKU: PLU0323 Category:

Features :

  1. Good sensitivity to Combustible gas in a wide range
  2. High sensitivity to Propane, Butane, and LPG
  3. Long life and low cost
  4. Simple drive circuit
  5. An indication of the signal output
  6. Dual signal output (analog output, and TTL level output)
  7. The TTL output signal is low. (When low output signal light, and can be connected directly to the microcontroller)
  8. 0 ~ 5V analog output voltage, the higher the concentration, the higher the voltage.
  9. High sensitivity to hydrogen.
  10. Can be resistant to ethanol steam, LPG (petroleum), smoke interference.
  11. Has a long life and reliable stability.
  12. Fast response and recovery characteristics.
Model MQ-6
Operating Voltage (VDC) 5
Detecting Range 200-10000 PPM
Operating Temperature (°C) -20 to 40
Opt. Relative Humidity(RH) <95%
Length (mm) 32
Width (mm) 20
Height (mm) 22
Weight (gm) 7
Shipment Weight 0.01 kg
Shipment Dimensions 5 × 5 × 4 cm
Weight 0.1 g
Dimensions 5 × 5 × 4 mm
