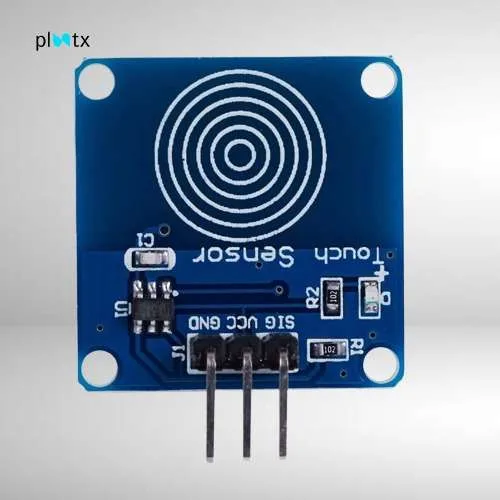

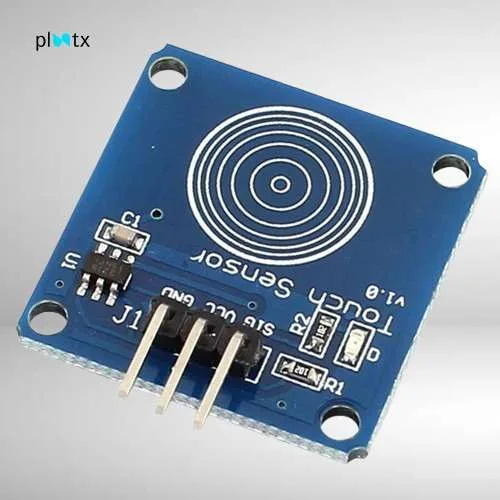

The TTP Touch Sensor is an innovative capacitive touch module designed for interactive electronics projects. This sensor utilizes advanced capacitive touch technology to detect human touch on its surface without the need for physical pressure. It offers a highly sensitive and responsive touch interface, making it ideal for applications like touch-sensitive controls, interactive displays, and proximity detection systems. The sensor can detect touch through various materials, enabling seamless integration into diverse surfaces. Its compact size, low power consumption, and easy interfacing with microcontrollers make it popular among hobbyists and professionals alike. Upgrade your projects with intuitive touch functionality using the TTP Touch Sensor, enhancing user experience in interactive electronics applications.
Features :
- Low power consumption
- Power supply for 2 ~ 5.5V DC
- Can replace the traditional touch of a button
- Four M2 screws positioning holes for easy installation
- Output Pin Sink Current (@ VCC = 3V, VOL = 0.6V) : 8 mA
- Output pin pull-up current (@ VCC = 3V, VOH = 2.4V) : 4 mA
| Operating Voltage (VDC) | 2 ~ 5.5 |
| Output high VOH | 0.8VCC V |
| Output low VOL | 0.3VCC V |
| Response time (touch mode) | 60 mS |
| Response time (low power mode) | 220 mS |
| Length (mm) | 24 |
| Width (mm) | 24 |
| Height (mm) | 2 |
| Weight (gm) | 0.6 |
| Shipment Weight | 0.085 kg |
| Shipment Dimensions | 3 × 3 × 1 cm |
Package Includes :
1 x Digital Sensor TTP223B Module Capacitive Touch Switch.
