Original price was: ₹173.00.₹123.00Current price is: ₹123.00.

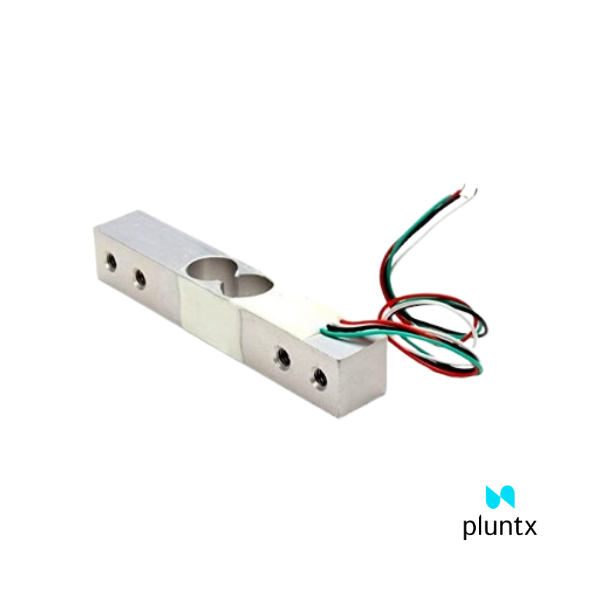

The 10kg Load Cell is a precision sensor designed to measure compressive or tensile forces in a variety of applications. This load cell is engineered to accurately detect and convert physical force or weight into an electrical signal. It is commonly used in industrial scales, weight measurement systems, and force-testing equipment. With its 10kg capacity, it can handle a wide range of loads while providing precise measurements. Its durable construction ensures reliability and longevity even in demanding environments. The load cell is equipped with strain gauges that change resistance in response to applied force, making it a vital component for applications requiring accurate weight or force measurements.
Availability: 1 in stock
| Non Linear Output | ± 0.03% F.S |
| Hysteresis | 0.03% F.S |
| Repeatability | 0.03% F.S |
| Creep | 0.03%F.S./30min |
| Cable Length (cm) | 18 |
| Zero Balance | ± 0.1 mV / V |
| Insulation Resistance (MΩ) | 2000 |
| Impedance (Ω) | 1115±10% Ω |
| Output Impedance | 1000 ± 10% Ω |
| Operating Temperature Range (°C) | -20 to 60 |
| Weight (gm) | 27 |
| Shipment Weight | 0.08 kg |
| Shipment Dimensions | 12 × 7 × 4 cm |
| Weight | 0.8 g |
|---|---|
| Dimensions | 12 × 7 × 4 mm |
