Are you tired of switching your night lamp on and off every day? Why not automate it? With a Light Dependent Resistor (LDR), a few basic electronic components, and a bit of creativity, you can build your own automatic night lamp that intelligently turns on when it’s dark and switches off in daylight.
This project is perfect for beginners who want to get started with basic electronics and understand how sensors like LDRs work in real-world applications.
Project Overview
The Automatic Night Lamp is designed to:
Detect surrounding light levels
Turn ON the lamp automatically in darkness
Switch OFF the lamp when sufficient light is available
An LDR senses the light, while Arduino processes the data and controls a relay module that switches the lamp safely.
Working Principle
An LDR changes its resistance depending on the intensity of light falling on it. Arduino reads this change through an analog pin and converts it into a digital value.
In bright conditions, Arduino receives a higher value and keeps the lamp OFF.
In low-light or dark conditions, the value drops below a set threshold, and Arduino turns the lamp ON.
This decision-making process happens continuously, ensuring reliable automatic operation.
What is an LDR?
An LDR (Light Dependent Resistor) is a special type of resistor whose resistance changes with light intensity. In simple terms:
More light → Less resistance
Less light (dark) → More resistance
This unique property allows it to act like an electronic eye that detects light and triggers actions—like turning on a night lamp when it gets dark.
Components Required
Arduino Uno / Nano
Light Dependent Resistor (LDR)
10kΩ resistor
5V relay module
LED (for testing) or AC bulb
Breadboard or PCB
Jumper wires
USB cable

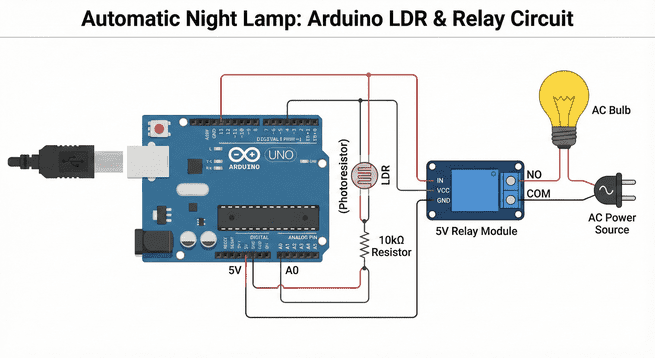

Circuit Description
The LDR and 10kΩ resistor form a voltage divider connected to Arduino’s analog pin A0. The relay module is connected to a digital pin and acts as an electrical switch to control the lamp.
Connections:
LDR → 5V and A0
Resistor → A0 and GND
Relay IN → Digital pin 8
Relay VCC → 5V
Relay GND → GND
⚠️ When working with AC lamps, proper insulation and safety precautions are required.
Arduino Code
// Automatic Night Lamp using LDR and Arduino
int ldrPin = A0; // LDR connected to A0
int relayPin = 8; // Relay control pin
int threshold = 500; // Light level threshold
int ldrValue;
void setup() {
pinMode(relayPin, OUTPUT);
digitalWrite(relayPin, HIGH); // Relay OFF initially
Serial.begin(9600);
}
void loop() {
ldrValue = analogRead(ldrPin);
Serial.println(ldrValue);
if (ldrValue < threshold) { // Dark condition
digitalWrite(relayPin, LOW); // Lamp ON
} else {
digitalWrite(relayPin, HIGH); // Lamp OFF
}
delay(300);
}
Testing and Calibration
Open the Serial Monitor in Arduino IDE to observe LDR readings in different lighting conditions.
Set the threshold value between the daylight and darkness readings for accurate switching.
Results
The lamp turns ON automatically when light intensity falls.
The lamp switches OFF when light is restored.
The system operates without manual intervention.
Power consumption is minimal.
Applications
Home night lamps
Automatic street lights
Garden and pathway lighting
Security lighting
Energy-saving lighting systems
Conclusion
The Automatic Night Lamp using LDR and Arduino is a practical project that introduces sensor-based automation in a simple and effective way. It highlights how Arduino can be used to build intelligent systems that improve convenience and reduce energy consumption.
This project serves as a strong foundation for more advanced home automation and smart lighting applications.
